10K 3976 PI Max NTC Medical Thermistor 0.5mm Epoxy Resin Enamelled Wire

Name: 10K 3976 PI Max NTC Medical Thermistor 05mm Epoxy Resin Enamelled Wire
Brand: JP SENSOR
Price: 1 USD

Quality 10K 3976 PI Max NTC Medical Thermistor 0.5mm Epoxy Resin Enamelled Wire wholesale

Brand Name : JP SENSOR

Model Number : JP404

Certification : CE, ISO13485, ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 1000 Pieces

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Carton Package

Resistance : R25=10kΩ（±0.1℃)

B Value : B25 / 85=3976±0.5%

Wire : OD 0.12*2 enameled wire

Operating Temperature : 0℃~60℃

Temperature Tolerance : 25℃~45℃ ±0.1℃

Usage : Applied for urinary catheters, cardiothoracic surgery, laboratory animal research, etc.

Customization : Available

Feature : Comply with RoHS, Fast Response, Miniature

Contact Now

10K 3976 PI Max NTC Medical Thermistor 0.5mm Epoxy Resin Enamelled Wire

Brief Introduction:

JP404 medical temperature sensor is a miniature medical temperature sensor NTC thermistor. After the miniature chip is welded, it is covered with a polyimide tube with an outer diameter of Max φ0.5. The inside of the sleeve is filled with epoxy, and the lead is covered by OD0.12*2 enameled wire.

Features:

Comply with RoHS

Miniature

Fast Response

Operating Temperature Range: 0℃~60℃

Measurement Tolerance: 25℃~45℃ ±0.1℃

R25=10kΩ(±0.1℃)

B25/85=3976±0.5%

Application:

Applied for urinary catheters, laboratory animal research, cardiothoracic surgery, etc.

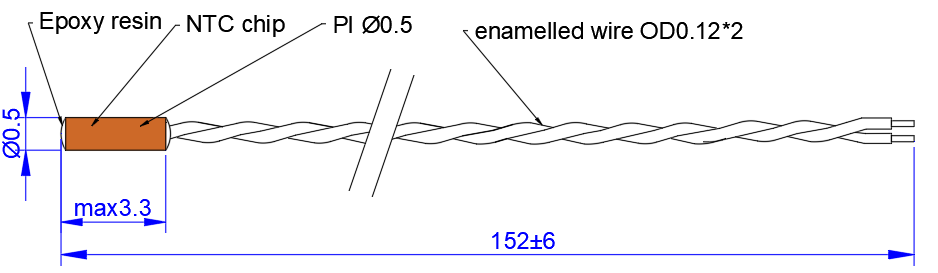

Structure and Dimensions:(Unit: mm)

10K 3976 PI Max NTC Medical Thermistor 0.5mm Epoxy Resin Enamelled Wire

Electrical Specification:

Item	Code	Test condition	Performance requirements	Unit
(Rated resistance)	R25℃	+25℃±0.02℃	10	kΩ
(B value)	B25/85	+25℃±0.02℃, +85℃±0.02℃	3976	K
(Response time)	τ	23℃(air)→44℃(water),≤±0.1℃	≤5	S
(Max.Energy Dissipation)	Pmax	In water(≤1.2mA),≤0.02℃	Approx 50	μW
(Withstand voltage)	Hi-pot	AC300V 1mA 1s In still air	No break down	V
(Operating Temp. Range)	OTR	In still air	0～50	℃
